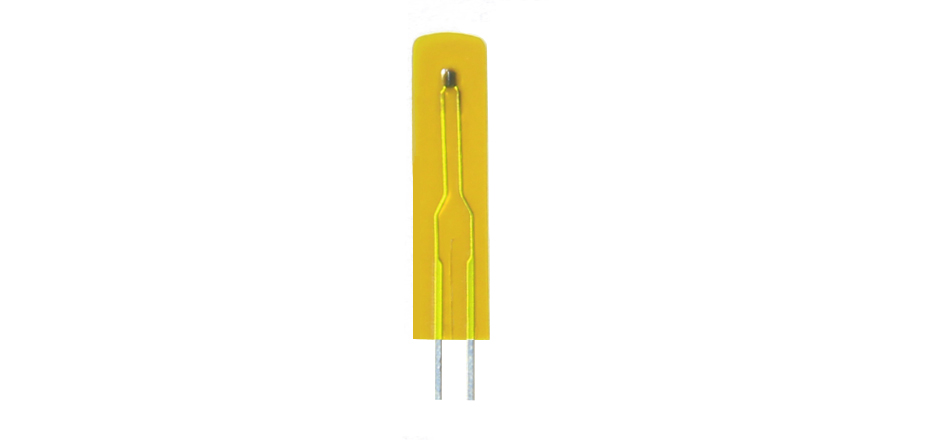

NTC Insulation Film Thermistor

Introduction

Name: Negative Temperature Coefficient (NTC) Thermistor Insulation Film Type TTF 100KΩ Series



■ Features

 Band: Thinking Use: For Temperature Sensing/Compensation
 Body Size: W:3.6 mm  L:10+2, 25+5, 50+5 mm Operating temperature range: - 40℃ ~ +100

 ● ROHS compliant

 ● Halogen-Free(HF)series are available

 ● Radial leaded insulation film coated

 Agency recognition:



 UL/cUL File NO: E138827

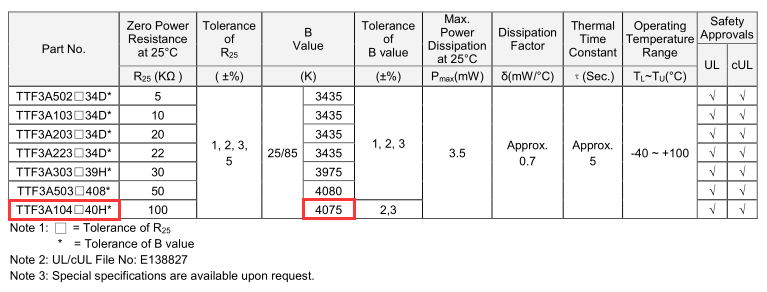

■ Electrical Characteristics


       After you confirm the model, we will send you the samples and datasheet of this model

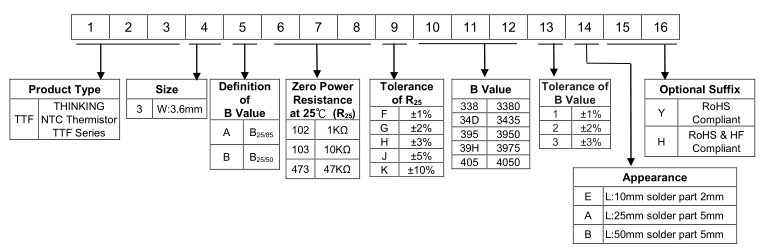

■ Part Number Code

Part Number Code.png

    ●  Complete model example:  TTF3A104F40H1AY , TTF3A104J40H1BY

     ●  Common Suffixes:1AY, 1BY



■ Recommended Applications

   1. Home appliances

   2. Computers

   3. Battery packs

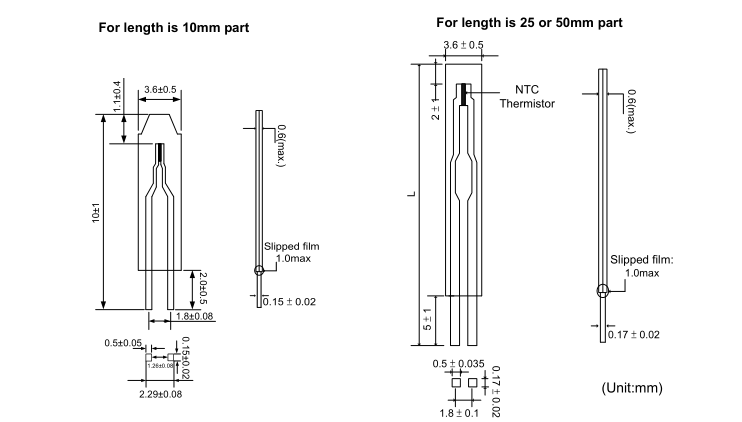

■ Structure and Dimensions

Structure and Dimensions.png

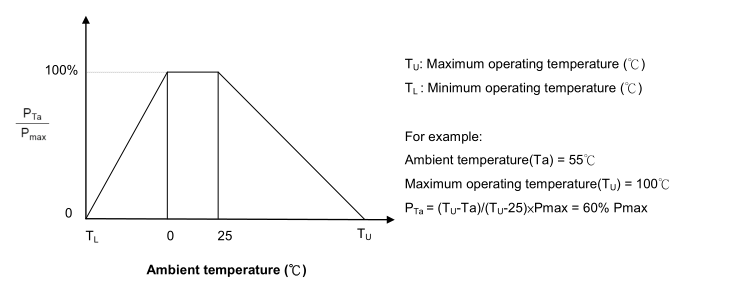

■ Max.Power Dissipation Derating Curve

Max. Power Dissipation Derating Curve.png

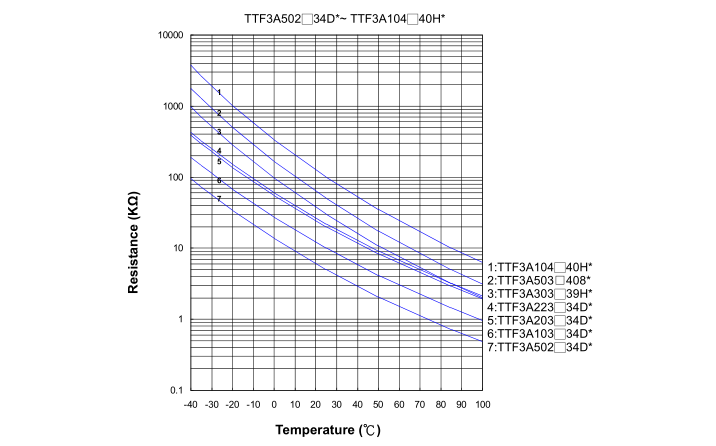

■ R-T Characteristic Curves

R-T Characteristic Curves.png

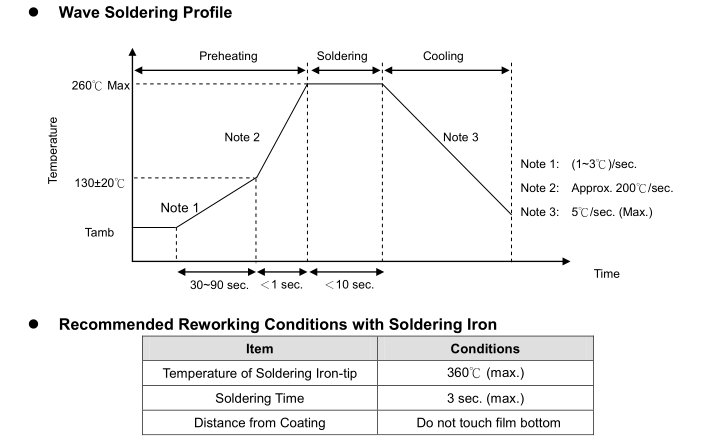

■ Soldering Recommendation

Soldering Recommendation.png

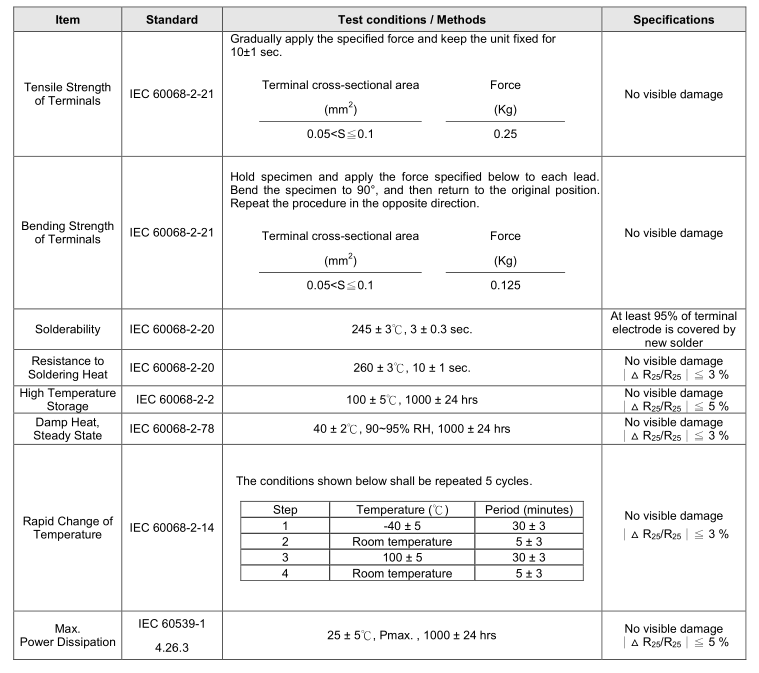

■ Reliability

Reliability .png

■ Packaging

       Bulk packing: 500pcs/pag


■ Warehouse Storage Conditions of Products

   TTC 03 Warehouse storage conditions of products.png
