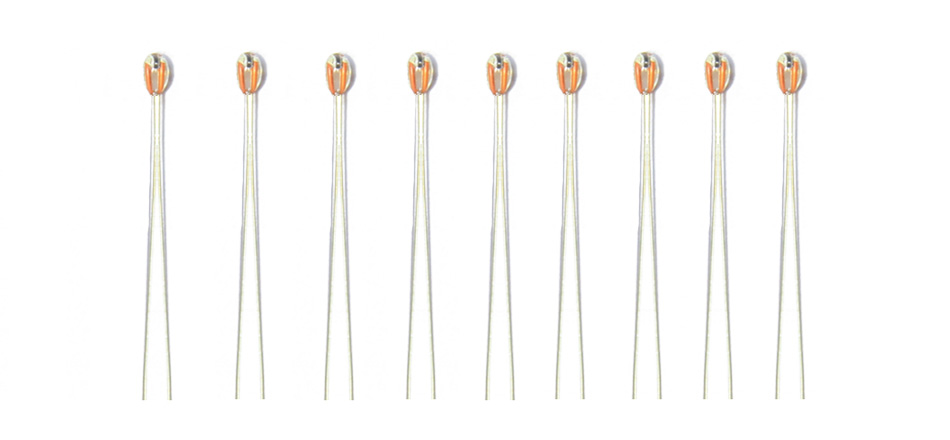

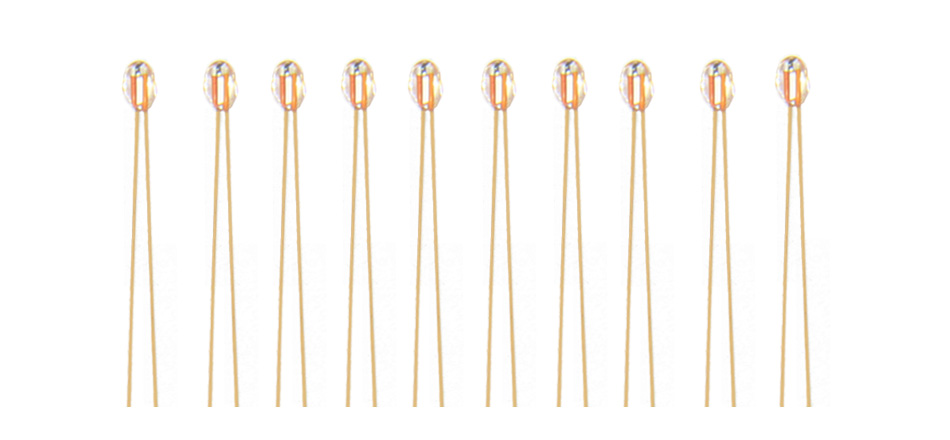

Glass Encapsulated Thermistor

Introduction

Name: Negative Temperature Coefficient (NTC) Thermistor Glass Encapsulated Type TGM 10KΩ Series



■ Features

 Band: Thinking Use: For Temperature Sensing/Compensation
 Body Size: Ф2.5 mm Operating temperature range: - 40℃ ~ +250

 ● ROHS compliant

 ● Glass-encapsulated and heat-resistive

 Agency recognition:



 UL/cUL File NO: E138827

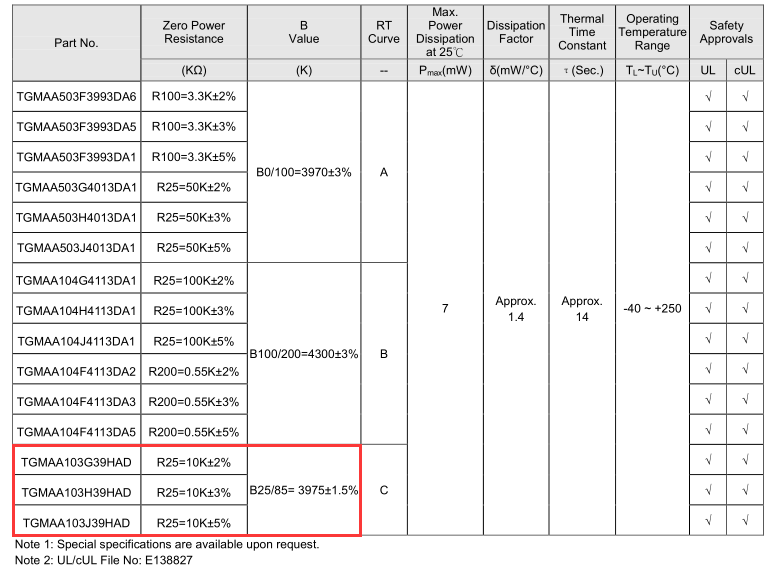

■ Electrical Characteristics


       The resistance, B value, wire and its length, processing methods all can be customized

        After you confirm the model, we will send you the samples and datasheet of this model


■ Recommended Applications

   1. Home appliances

   2. Automotive electronics


■ Structure and Dimensions

Structure and Dimensions.png


■ Max.Power Dissipation Derating Curve

Max. Power Dissipation Derating Curve.png


■ R-T Characteristic Curves

                            R-T Characteristic Curves (representative).png




■ Reliability


■ Warehouse Storage Conditions of Products

   TTC 03 Warehouse storage conditions of products.png
