Temp Sensor For Battery

Introduction

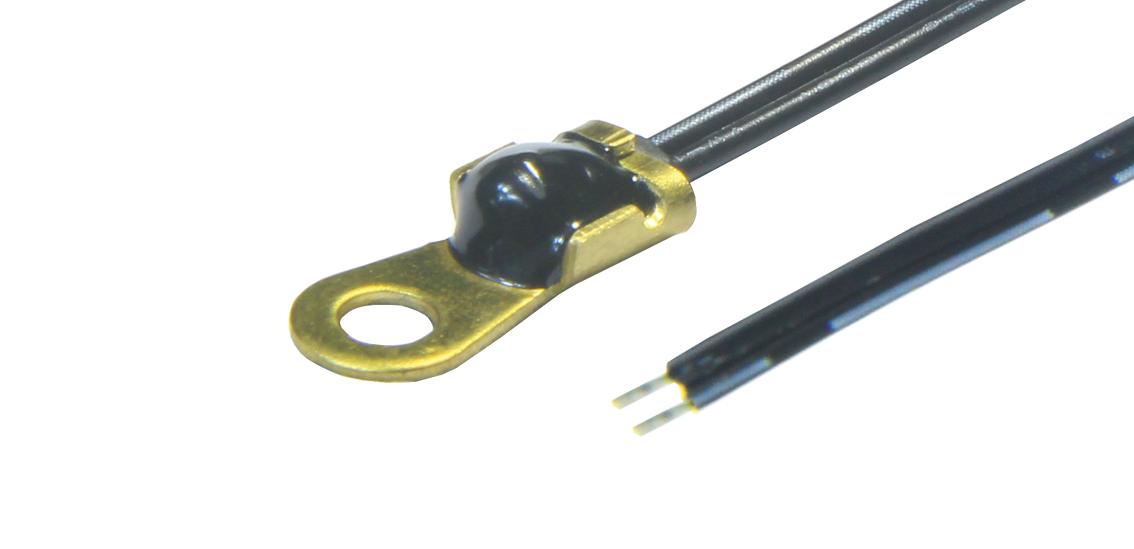

Name: Temperature sensor for Battery


■ Features

 Band: Veteng Use: For temperature sensing
 Product model: VT0104FA198 Operating temperature range: - 30℃ ~ +125

 Agency recognition: UL

 ROHS

 NTC workin Temp.Rage: - 40℃ ~ +125

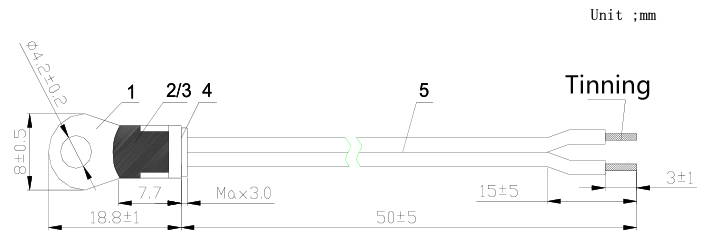

■ Product Drawing



■ Material List

ItemMaterialdatasheetQuantity
1shell4.2*18.8*0.8T Brass terminal (DES1406006 A-0)1PCS
2NTC ThermistorR25=100KΩ±1.5%   B25/50=4150K±1%1PCS
3EpoxyJ-106A: J-106B: J-106X Black/
5
WireUL3266 28AWG 2C TS 125℃ 300V  Black1PCS
4TubeΦ2.5 125℃  600V  Black1PCS

  ●  The Shell, component, wire, connector,  and their color, size, shape, and processing methods, all can

 be customized according to your design

    ●  The special shape of the shell and component, we can cooperate with the design and manufacture of

 new molds

      If you need some samples, please contact us


■ Electrical Characteristic

NO.ItemSymbolTest ConditionsMin.Nor.Max.Unit
1
Resistance at 25℃R25Ta=25℃±0.05℃

PT≦0.1mW

98.5100101.50 KΩ
2Resistance at 50℃R50

Ta=50℃±0.05℃

PT≦0.1mW

/
34.067/ KΩ
3B Value
B25/1003853.887* LnK4108.54150.04191.5 K
4Thermal  Dissipation Constantδ

Ta=25℃

(in air)

/5.0/m W/℃
5

Response Time-In

 liquid

τ

25℃

→85℃ T1=25+(85-25)*63.2%=62.92℃

//15Sec
6Hi-Pot Test/AC1500V 3Sec//1.0mA
7Insulation test/DC500V 1Sec100//

   ●    The resistance, B value and other parameters can be selected as your requirements


■ Mechanical Tests

NO.ItemPass CriteriaTest Conditions
1

Pull

Test

Not loose, no

 deformation

The connection strength between housing and wire,

pull≥1KG(9.8N)

2

Drop

Test

Appearance no

 obvious damage

At the height of 1 meters, the product falls freely and falls to the 10mm thick oak board, 5 times

■ Reliability Tests

NO.ItemPass CriteriaTest Conditions
1

High Temperature

Storage

⊿R/R25≤±3%

No visible damage to appearance

125±5℃,1000±24H

After the test, wait at normal temperature for 2 hours

2

Low Temperature

Storage

-30±5℃,1000±24H

After the test, wait at normal temperature for 2 hours

3

Constant temperature

and humidity test

40±2℃,90%~95% RH,100H±24H

After the test, wait at normal temperature for 2 hours

4

Temperature impact

test(in air)

–30℃×30min→25℃×5min→105℃×30

min→25℃×5min,Cycle 10 times

After the test, wait at normal temperature for 2 hours

■ Soldering Iron Setting

NO.ItemSettings/Parameters
1Temperature of Soldering Iron-tipT≤360℃
2Soldering TimeS≤3Sec
3Distance From ThermistorL≥10mm

■ Storage Conditions

   1 Ambicnt  Temperature: -10℃~+40℃

   2  Relative Humidity: ≦75%RH

   3 Keep away from corrosive atmosphere and sunlight

   4 Period of Storage: 1 year


■ Product Application Conditions

   1 Maximum service temperature and  maximum power  in application should not exceeds specification listed in  Product  Specification;

   2 Much be handled with care when moving and installing the product;

   3 Product should not be used when deformed or rusty casing is observed on product;

   4 Product should not be used when broken housing ,or excessive deformation on housing is observed;

   5 Avoid excessive  temperature fluctuation when operating the product in its operational temperature range;

   6 Do not apply excessive shock and vibration on product;

   7 Do not pull or bend the lead wire  excessively;

   8 Do not use in any ambient with  corrosiven gas (CO2,NH3,Sox,Nox);

     Do not use in any ambient with electrolytic solution with brine,acid,alkaline and organic

   9 Do not use in  environment with water.high moisture,and high corrosive solution;

   10 Current throught NTC element will cause self-heating,and may affect the measurement;

   11 This product belongs to surface appressed type sensor temperature, when using, need to make bottom plane fully and heating;






     ●    We are so happy to answer any questions. send a message or E-mail to us. We will respond as soon as possible.

     ●   Ordering process:Confirm the product and datasheet → Send samples → Confirm samples and quotes → Test passed → Order+ payment → Manufacture+payment → Deliver

     ●   Because the temperature sensors are custom products, can only be ordered in bulk and not retail

     ●   For other NTC temperature sensors not listed on this website, please contact us, Yes, direct procurement from China is so easy
