NTC 100K Thermistor TTC3A104 419

Introduction

Name: Negative Temperature Coefficient (NTC) Thermistor TTC3A104☐419*



■ Features

 Band: Thinking Use: For Temperature Sensing/Compensation
 Body Size: Ф03 mm Operating temperature range: - 40℃ ~ +125

 ● ROHS compliant

 ● Halogen-Free(HF)series are available

 ● Radial lead resin coated

 ● Wide resistance range

 ● Cost effective

 Agency recognition:



 UL File NO:E138827

 TUV File NO: R 50050155

 CQC File NO:CQC04001011945;CQC04001011966

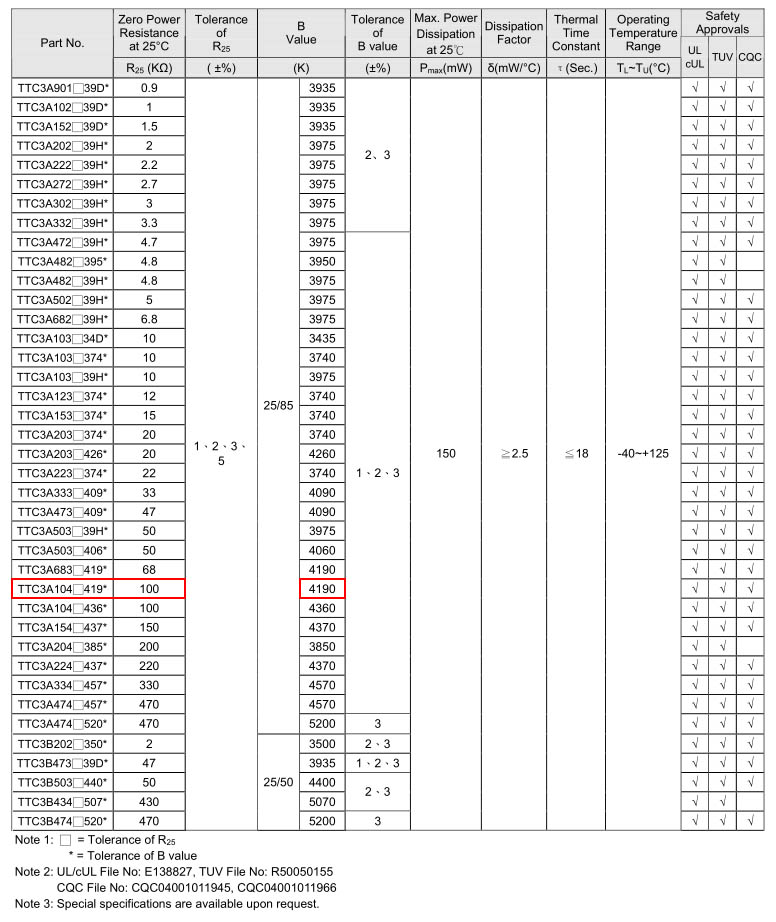

■ Electrical Characteristics  (The same resistance value,  the B value of different brands is

 different, you can only choose the most similar one)


    ●  TTC3A104 is the hot model

    ●  After you confirm the model, we will send you the samples and datasheet of this model

    ●  Free samples

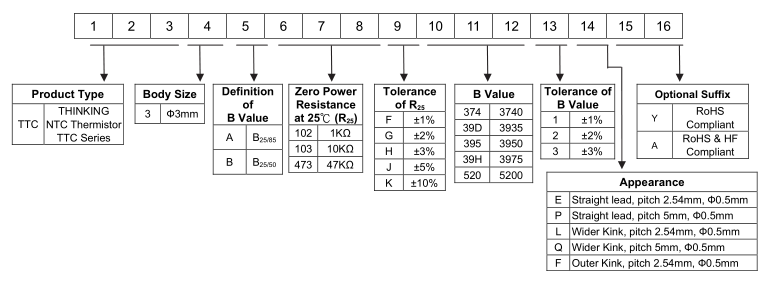

■ Part Number Code


     ●  Complete model example:TTC3A104F4191EY

      ●  Common Suffixes:1EY


■ Recommended Applications

   1. Home appliances

   2. Computers

   3. Digital meters

   4. Switch mode power supplies

   5. Adapters

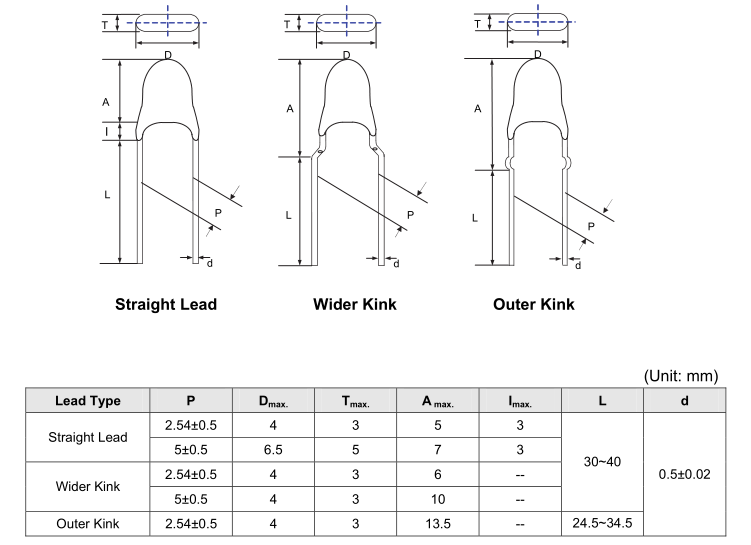

■ Structure and Dimensions (We can cut short the leads according to requirements)

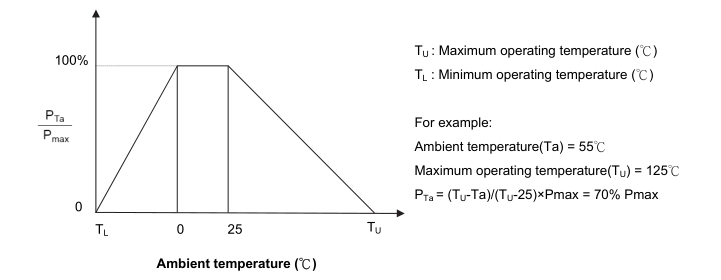

■ Max.Power Dissipation Derating Curve



■ R-T Characteristic Curves

    TTC 03 3A901~3A474.png

        TTC 03 3A102~3B434.png

    TTC 03 3A901~3A474.png

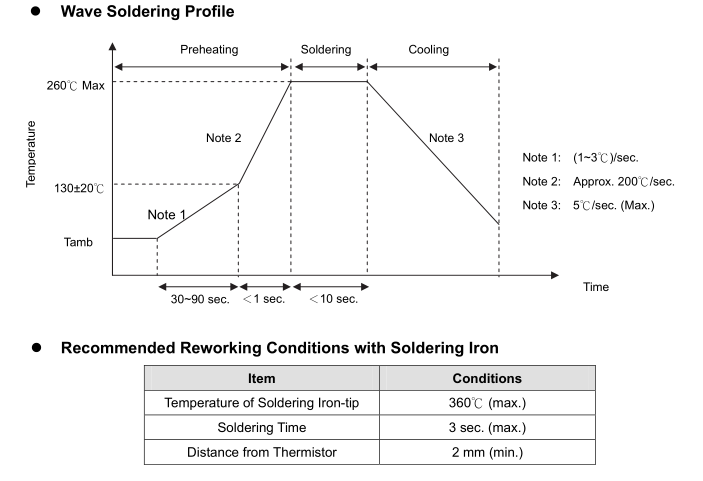

■ Soldering Recommendation



■ Reliability

TTC 03 Reliability.png


■ Packaging

TTC 03 Straight Lead 直脚.png

TTC 03 Wider Kink 弯脚.png

TTC 03 Outer Kink 外弯脚.png

        What are the advantages and disadvantages of different packaging methods for varistors?


■ Quantity

TTC 03 Quantity.png


■ Warehouse Storage Conditions of Products

   TTC 03 Warehouse storage conditions of products.png
