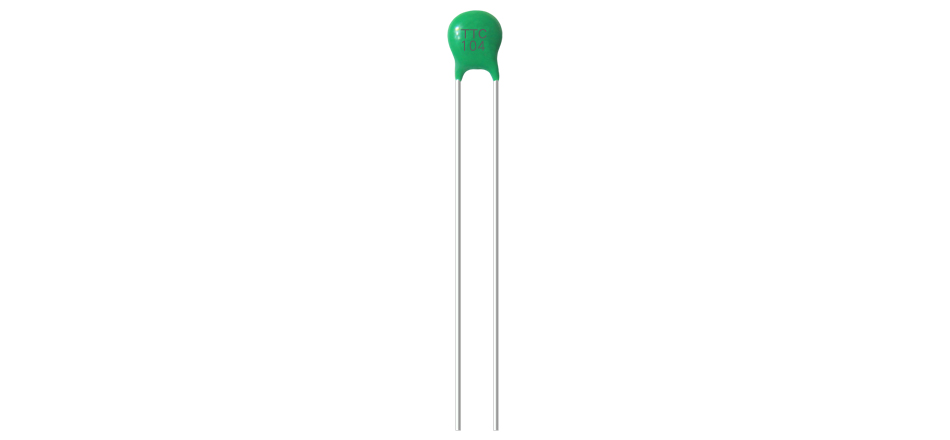

NTC 100K Thermistor TTC05104

Introduction

Name: Negative Temperature Coefficient (NTC) Thermistor TTC05104



■ Features

 Band: Thinking Use: For Temperature Sensing/Compensation
 Body Size: Ф05 mm Operating temperature range: - 30℃ ~ +125

 ● ROHS compliant

 ● Halogen-Free(HF)series are available

 ● Radial lead resin coated

 ● Wide resistance range

 ● Cost effective

 Agency recognition:

 UL&CUL File NO:E138827

 CSA File ON: 97495

 TUV File NO: R 50050155

 CQC File NO:CQC05001011991;CQC05001011994

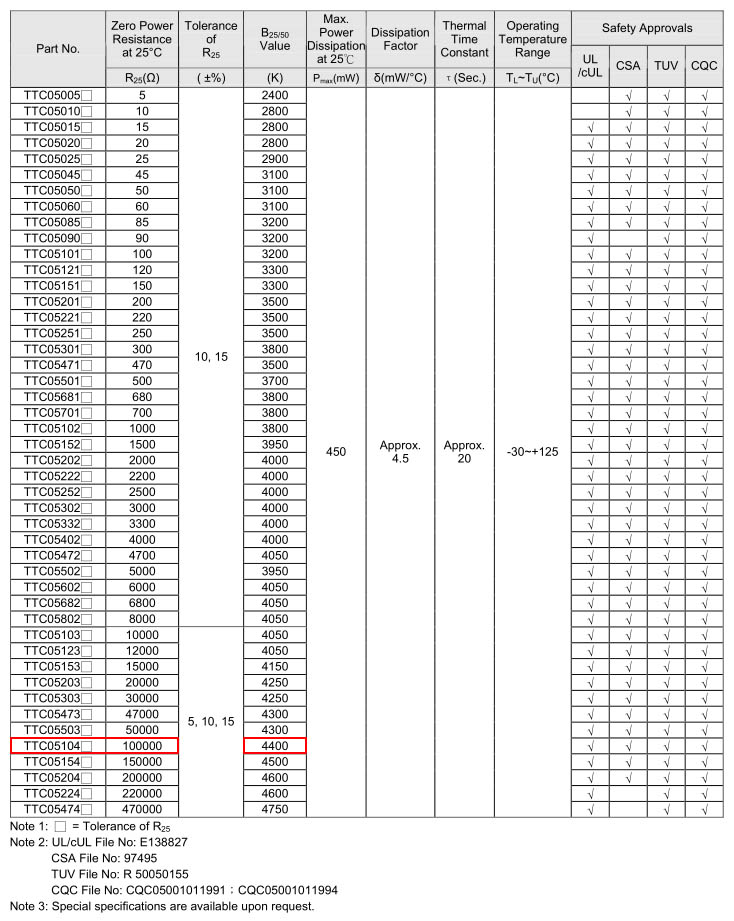

■ Electrical Characteristics (The same resistance value,  the B value of different brands is

 different, you can only choose the most similar one)


   ●  TTC05104 is the hot model

   ●  After you confirm the model, we will send you the samples and datasheet of this model

    ●  Free samples

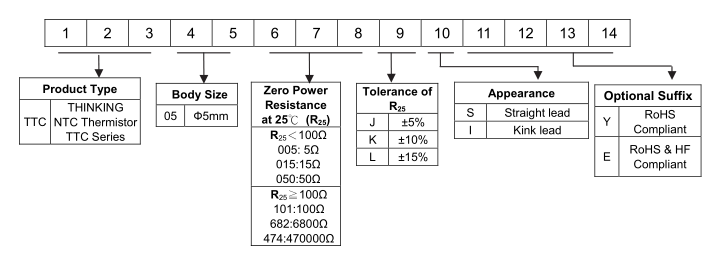

■ Part Number Code


     ●  Complete model example:TTC05104JSY ,TTC05104KSY

      ●  Common Suffixes:JSY


■ Recommended Applications

   1. Home appliances

   2. Automotive electronics

   3. Computers

   4. Switch mode power supplies

   5. Adapters

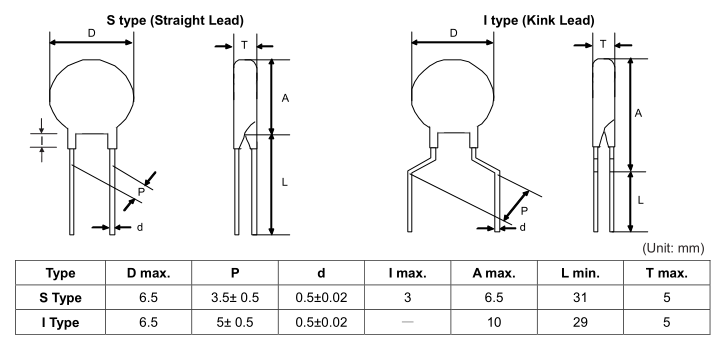

■ Structure and Dimensions (We can cut short the leads according to requirements)

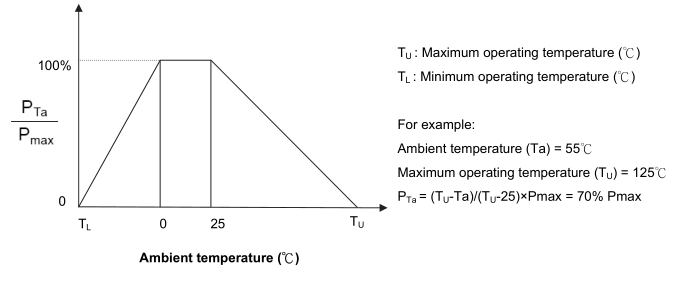

■ Max.Power Dissipation Derating Curve

M .png

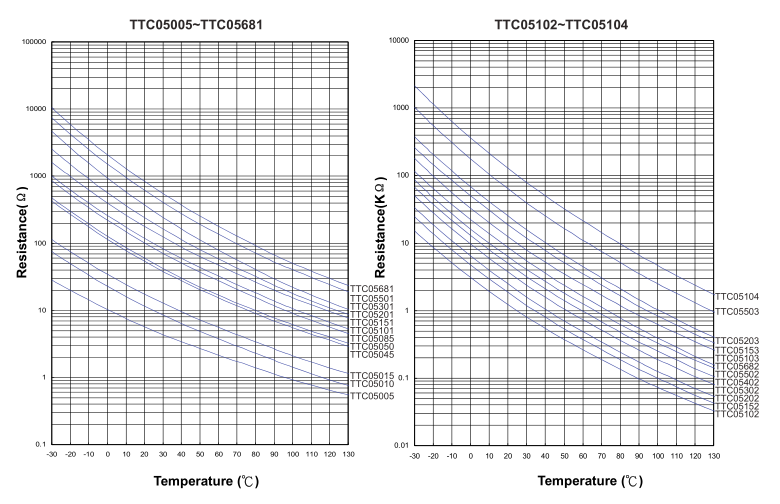

■ R-T Characteristic Curves(representative)

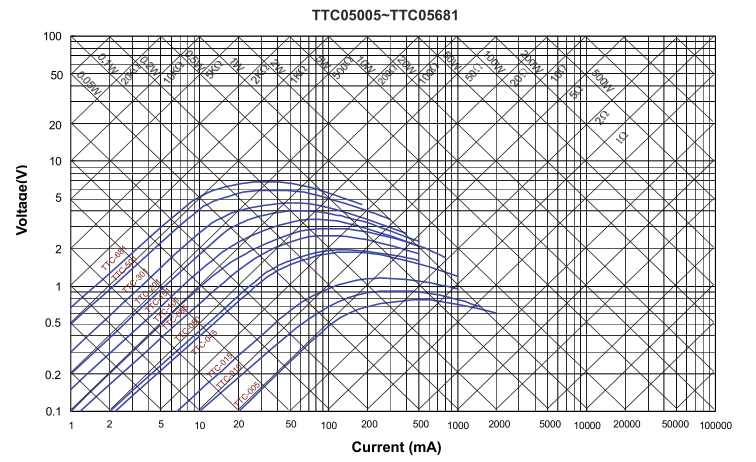

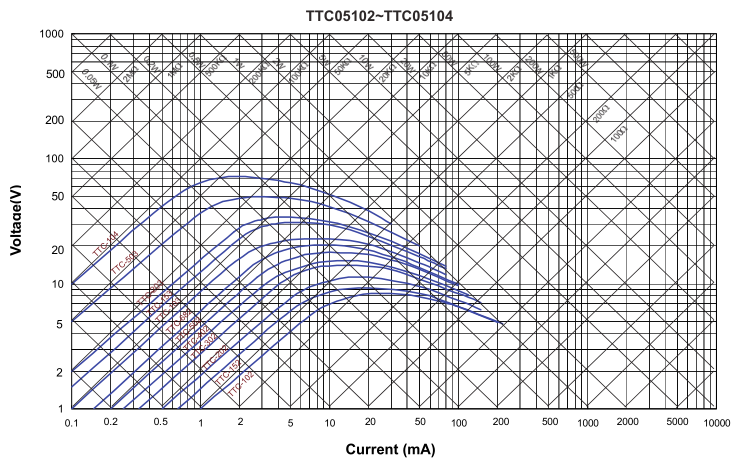

■ V-I Characteristic Curves(representative)




■ Soldering Recommendation

TTC 05 Soldering Recommendation.png


■ Reliability

TTC 05 Reliability.png

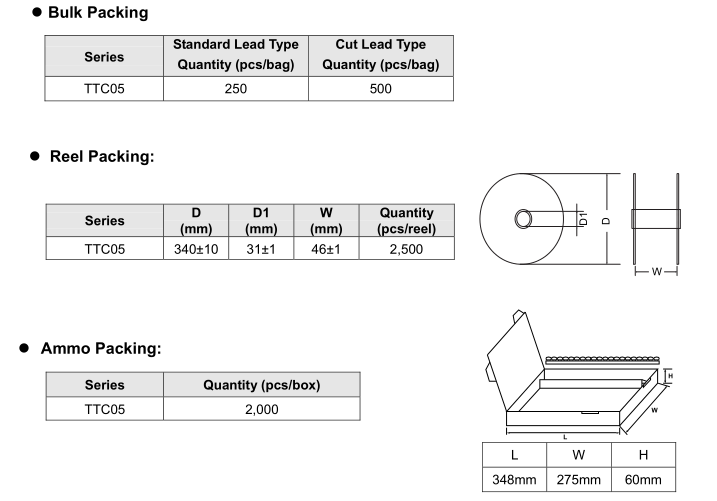

■ Packaging

TTC 05 Packaging.png

         What are the advantages and disadvantages of different packaging methods for varistors?


■ Quantity



■ Warehouse Storage Conditions of Products

   TTC 05 Warehouse Storage Conditions of Products.png









   ●    We are so happy to answer any questions. send a message or E-mail to us. We will reply as soon as possible.

    ●   Ordering process:Confirm the product and model → Send samples → Confirm samples and quotes → Test passed → Order+ payment → Manufacture+payment → Deliver

    ●   Most importantly, we are responsible for air transport, 7 days can reach most cities in the world. you can get the goods quickly without any shipping costs

    ●  For THINKING brand, We deliver the sample and the goods are the fastest, Common products can bedelivered on the same day,and the price is the most competitive, Yes, the procurement directly from China is so easy
