NTC Thermistor TSMAB Series

Introduction

Name: Negative Temperature Coefficient (NTC) Thermistor Surface Mounted Devices(SMD) Type TSMAB Series



■ Features

 Band: Thinking Use: For Temperature Sensing
 EIA Size: 0201 (L:0.6mm W:0.3mm H:0.35mm) Operating temperature range: - 40℃ ~ +125

 ● ROHS & Halogen-Free(HF)compliant

 ● Highly reliable structure

 ● Wide resistance range

 ● Cost effective

 Agency recognition:

 UL&CUL File NO:E138827

 TUV File NO: R 50050155

 CQC File NO: 12001080962

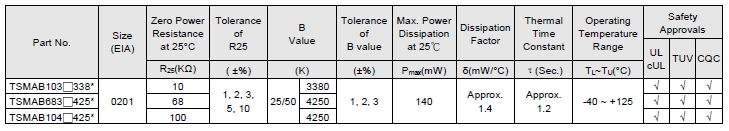

■ Electrical Characteristics  (The same resistance value,  the B value of different brands is

 different, you can only choose the most similar one)

TSM 0201.png

    ●  After you confirm the model, we will send you the samples and datasheet of this model

    ●  Free samples

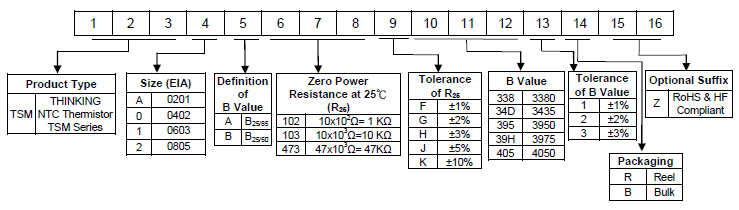

■ Part Number Code

VETENG TSM THERMISTOR.png

     ●  Complete model exampleTSMAB103F3381RZ

     ●  Common Suffixes:1RZ


■ Recommended Applications

   1. Battery pack

   2. Motherboard, notebook and personal computer device

   3. Liquid crystal display

   4. Cellular phone

   5. Bluetooth headset

   6. Wi-Fi module

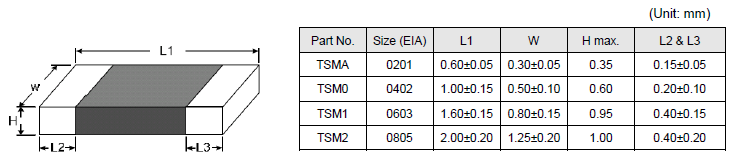

■ Structure and Dimensions

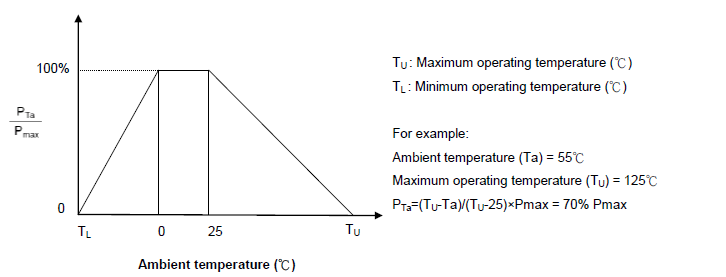

■ Max.Power Dissipation Derating Curve

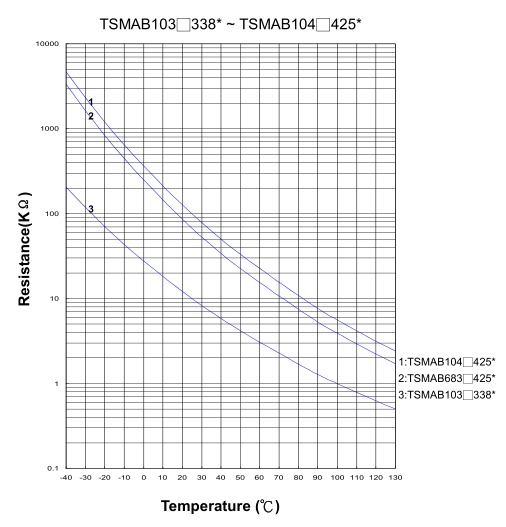

■ R-T Characteristic Curves

            R-T TSM AB.png

■ Soldering Recommendation

    Soldering Recommendation.png


■ Recommended Soldering Pad Dimensions

   Recommended Soldering Pad Dimensions.png

Notice of Soldering and Mounting on PC Board

  Notice of Soldering and Monting on PC Board.png

■ Reliability



■ Packaging




■ Quantity



■ Warehouse Storage Conditions of Products

   Warehouse Storage Conditions of Products.png
