NTC Thermistor DHT0A104☐430*

Introduction

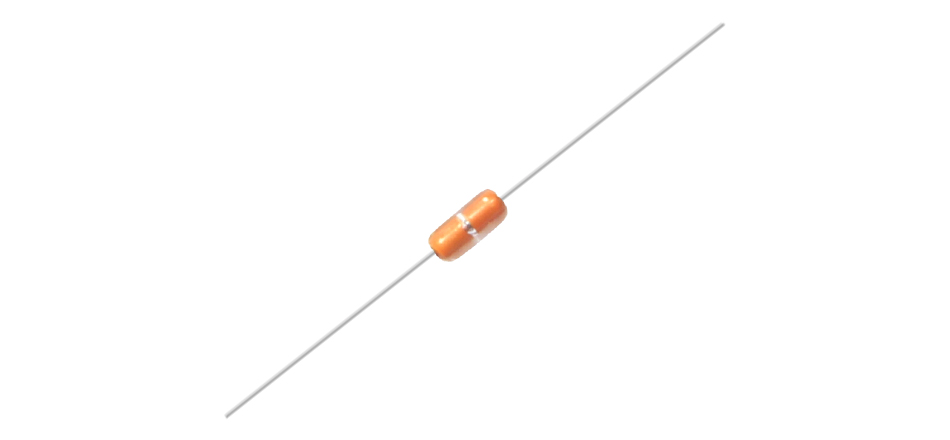

Name: Negative Temperature Coefficient (NTC) Thermistor Glass Axial Type DHT0A104☐430*



■ Features

 Band: Thinking Use: For Temperature Sensing/Compensation
 Body Size: Ф02X4 mm Operating temperature range: - 40℃ ~ +200

 ● ROHS compliant

 ● Axial lead glass-sealed

 Agency recognition:

   UL/cUL File NO:E138827

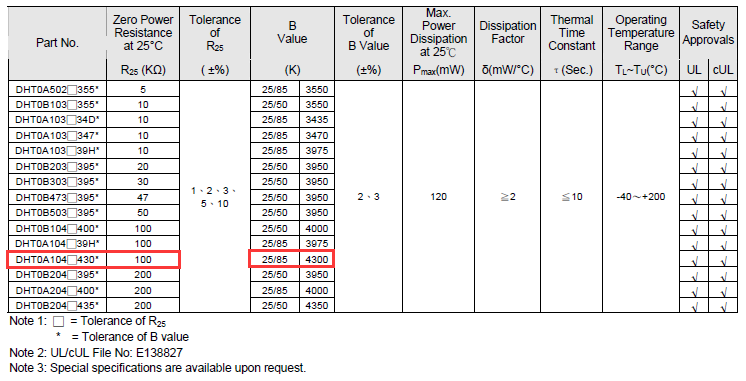

■ Electrical Characteristics  (The same resistance value,  the B value of different brands is

 different, you can only choose the most similar one)

 DHT0A104 430.png

    ●  After you confirm the model, we will send you the samples and datasheet of this model

    ●  Free samples

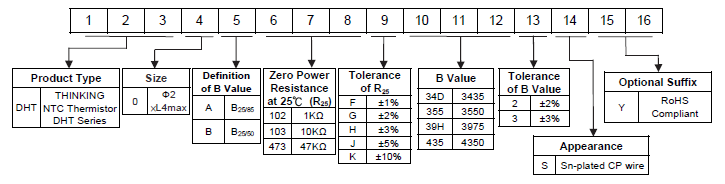

■ Part Number Code


       complete model example:DHT0A104F4302SY

       Common Suffixes:2SY


■ Recommended Applications

   1. Home appliances (air conditioner, refrigerator,electric fan, electric cooker, washing machine,microwave oven,

     drinking machine, CTV, radio.)

   2. Automotive electronics

   3. Heaters

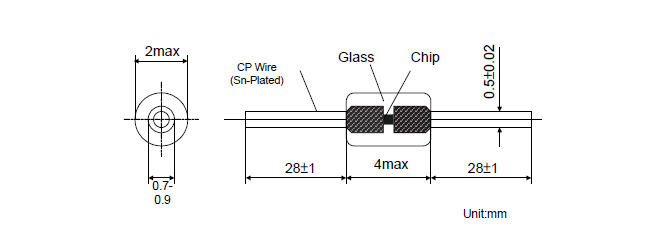

■ Structure and Dimensions

DHT SIZE.png

       If you are looking for the NTC Thermistor glass bead type,  please click on the link below:

         http://www.vtsensor.com/productds/598.html

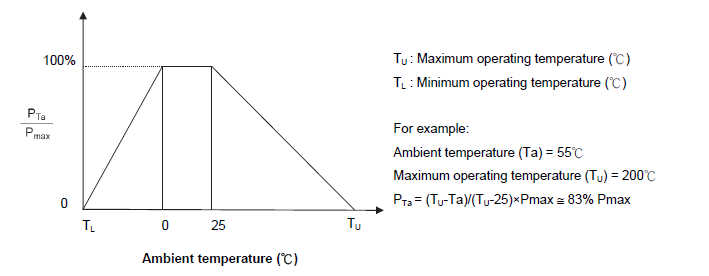

■ Max.Power Dissipation Derating Curve

DHT M.png

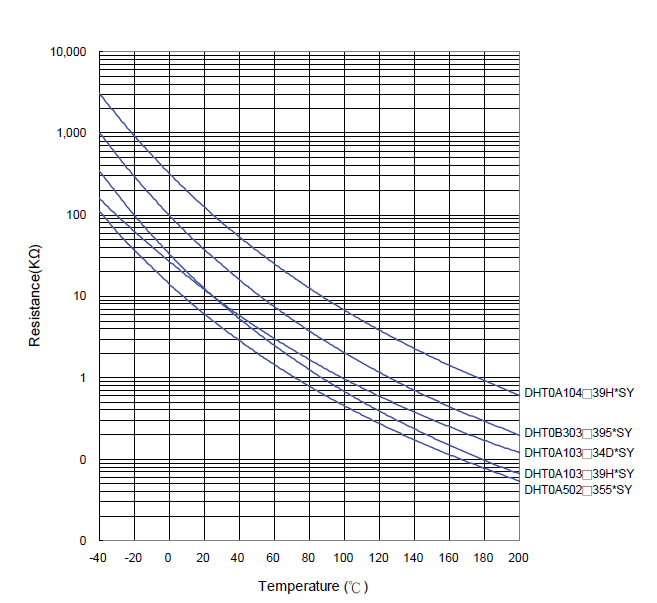

■ R-T Characteristic Curves

    DHT R-T .png



■ Soldering Recommendation

   DHT Soldering Recommendation.png


■ Reliability

 DHT Reliability.png


■ Packaging

   DHT Packaging.png

         What are the advantages and disadvantages of different packaging methods for varistors?


■ Quantity

  DHT Quantity.png


■ Warehouse Storage Conditions of Products

   DHT Warehouse Storage Conditions of Products .png
